Wood Chipper

Wood Chipper

Category:Wood Crusher Wood Chipper introdction: Description: 1. FM series disc chipper adopts low or high voltage motor, heavy-duty models driven by V-belt or directly connect to motor, feeding direction could be horizontal or oblique, chips discharged from top or bottom. 2. Length of fi...

Skype:lina_3687 Wechat
wechat

Similar Products

Introduction

 Description:

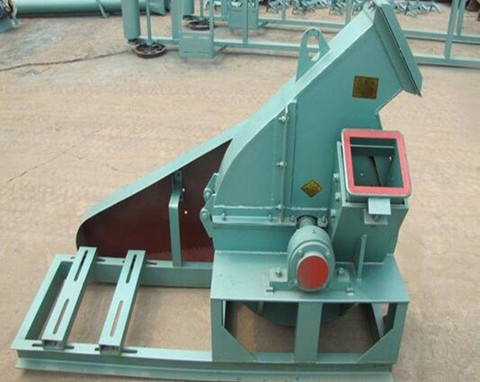

1. FM series disc chipper adopts low or high voltage motor, heavy-duty models driven by V-belt or directly connect to motor, feeding direction could be horizontal or oblique, chips discharged from top or bottom.
2. Length of finished chips is adjustable freely in specific range.
3.FM disc chipper consists of chassis, cutter, feeding port, shell, motor, and cabinet control.
4. suitable for log≤300mm (Dia.) and branches, applicable to paper-making factory, forestry industry and other wood processing factories.

Features:
1. 2-layers structure inside
2. use new type material to achieve sound-proofing
3. no vibration, very low noise, entire machine is made durable, the working capacity is 175% compare with traditional wood powder machines.
4. equipped new adjustable screen, it makes the powder fineness is controlable, fineness range 30-325mesh and all powder is even, this machine
5. equipped drum screen, could be replaced to be different size screen to control the fineness, the powder qualification reach to 100%!

Disc Wood Chipper Machine Application
1. wood, tree trunk, tree branch, straw, bamboo stick etc;
2. wooden piece, small tree branch, leaf, tree bark, feedstuff and chemical material etc material;
3. Orchard garden , Botanical garden, Landscaping department;( Trimmed branches, trunk, leaf can be crushed as fertilizer .)

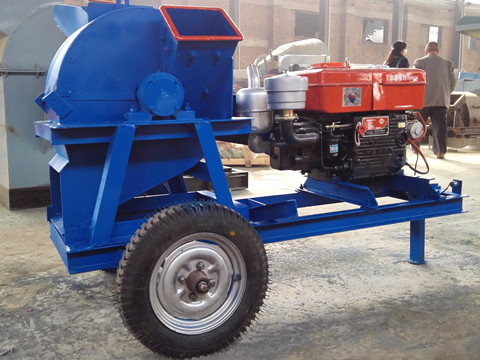

4. Machine can installed on the cart or farm vehicle;

Suitable raw material for wood chipper machine
Saw dust • Wood Chips • Wood logs • Tree branch • Wheat Straw • Peanut-shell • Rice husk •
Sugar Cane Bagasse • Coffee Husk • Paddy Straw • Sunflower Seed Husk • Sunflower Stalk • Reeds •
Cotton plant Stem • Tobacco waste • Mustard Stalk • Jute waste • Bamboo Dust • Tea waste • Palm husk • Soybeans husk and many other agro and forest wastes, which size is about 30mm.

Technology Parameters
Model FM-420 FM-600 FM-800 FM-950 FM-1150 FM-1410
Qty of Cutter(Blade) 3 3 4 4 4-6 4
Feeding Hole Size(mm) 150x150 180x150 200x200 230x250 300x330 400x400
Cutter Disk Diameter(mm) 420 600 835 830 1150 1410
Cutter Size(mm) 150x70x8 200x100x10 230x120x12 250x120x12 340x150x14 480x170x18
Capacity(t/h) 1 2 4 6 10 12
Main shaft Speed (r/min) 600 600 550 550 600 600
Overall dimension（mm） 1200x500x800 1500x730x1050 1850x7300x1240 1900x820x1500 2560x1150x1800 2900x1400x2350
