Description

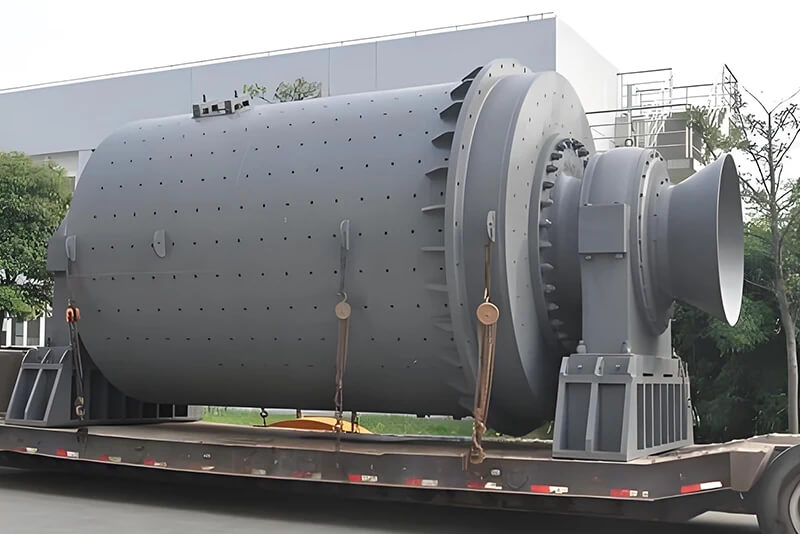

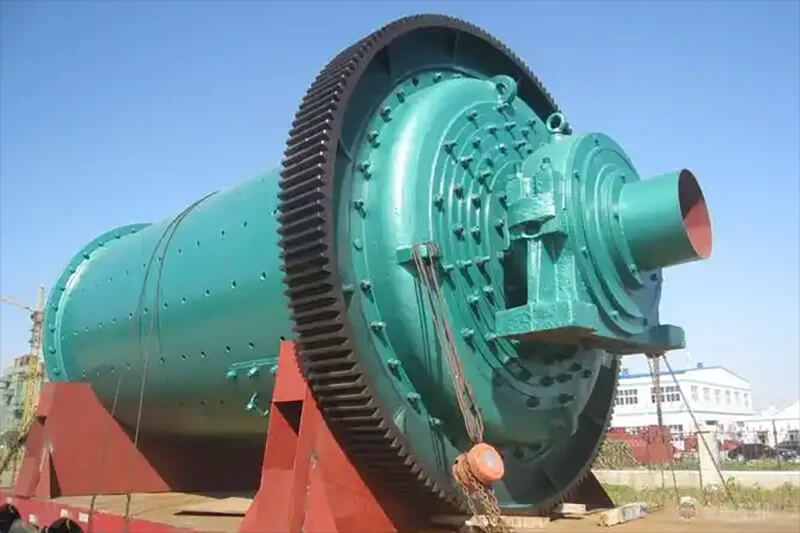

Most of the industrial production using wet ball mill, especially in the mineral processing industry is more commonly used grinding machinery. Such as: gold, silver, lead, zinc, copper, molybdenum, manganese, tungsten and other non-ferrous metals grinding; graphite, feldspar, potassium feldspar, phosphate rock, fluorite, clay, bentonite and other non-metallic grinding. Wet ball mill production process requires the addition of liquid ball milling media (water or anhydrous ethanol, etc.) auxiliary, the discharge port is flared, built-in spiral device, easy to discharge material.
Wet ball mill has high efficiency, uniform particles, no dust flying field, less noise. Because the particles in the ball milling process, large particles in the ball milling media grinding and impact, there will be cracks, cracks expand over time will break line into small particles, that is, the so-called grinding process. If it is dry grinding, then the particles in the ball milling process crack expansion, due to the ball milling ball or between the particles of the extrusion, the formation of cracks may be squeezed closed, the cracks can not be effectively expanded, the large particles can not be quickly fracture the formation of small particles, but if it is a wet milling, then the liquid ball milling media (water or anhydrous ethanol, etc.) will be into the formation of cracks in the crevices, blocking the cracks of the closure, which will effectively make the cracks Rapid expansion down, will greatly improve the efficiency of ball milling. However, the powder after wet grinding should be dried to remove water or other liquid media, so it will increase energy consumption and cost.
Advantages of Subsequent Processing and Applicability
Technical advantages
High quality castings
Our machines use high-quality materials and imported quality. Reduce the wear of accessories and increase the life of the machine.
Easy replacement of accessories
The lubrication system adopts polymer composite pipe, which effectively reduces the occurrence of oil leakage, and the novel design reduces the difficulty of installing parts.
Overload protection
When the unbreakable material falls into the crusher and the machine exceeds the normal load, the automatic stop device can automatically stop to avoid damage to the entire machine and ensure production safety.
Low noise and less dust
Through innovative R&D and design, our machine has the advantages of less dust, green and environmental protection, and passed the local environmental protection policy.
Technical parameters
| Model | Cylinder speed (r/min) | Ball loading (t) | Feeding size(mm) | Output size(mm) | Capacity(t/h) | Power(kw) | Weight(t) |
| Ø900×1800 | 38 | 1.5 | ≤20 | 0.075-0.89 | 0.65-2 | 18.5 | 3.6 |
| Ø900×3000 | 38 | 2.7 | ≤20 | 0.075-0.89 | 1.1-3.5 | 22 | 4.6 |
| Ø1200×2400 | 32 | 3.8 | ≤25 | 0.075-0.6 | 1.5-4.8 | 45 | 12.5 |
| Ø1200×3000 | 32 | 5 | ≤25 | 0.074-0.4 | 1.6-5 | 45 | 12.8 |
| Ø1200×4500 | 32 | 7 | ≤25 | 0.074-0.4 | 1.6.5.8 | 55 | 13.8 |
| Ø1500×3000 | 27 | 8 | ≤25 | 0.074-0.4 | 2-5 | 90 | 17 |
| Ø1500×4500 | 27 | 14 | ≤25 | 0.074-0.4 | 3-6 | 110 | 21 |
| Ø1500×5700 | 27 | 15 | ≤25 | 0.074-0.4 | 3.5-8 | 132 | 24.7 |
| Ø1830×3000 | 24 | 11 | ≤25 | 0.074-0.4 | 4-10 | 180 | 28 |
| Ø1830×6400 | 24 | 23 | ≤25 | 0.074-0.4 | 6.5-15 | 210 | 34 |
| Ø1830×7000 | 24 | 25 | ≤25 | 0.074-0.4 | 7.5-17 | 245 | 36 |
| Ø2200×5500 | 21 | 30 | ≤25 | 0.074-0.4 | 10-22 | 370 | 48.5 |
| Ø2200×6500 | 21 | 31 | ≤25 | 0.074-0.4 | 14-26 | 380 | 52.8 |
| Ø2200×7500 | 21 | 33 | ≤25 | 0.074-0.4 | 16-29 | 380 | 56 |
| Ø2400×7000 | 21 | 34.5 | ≤25 | 0.074-0.4 | 18-32 | 400 | 62.8 |
| Ø2400×8000 | 20.4 | 36 | ≤25 | 0.06-0.08 | 18-36 | 410 | 81.2 |
| Ø2700×3600 | 18 | 37 | ≤25 | ＜0.08 | 50 | 410 | 77.5 |
