Description

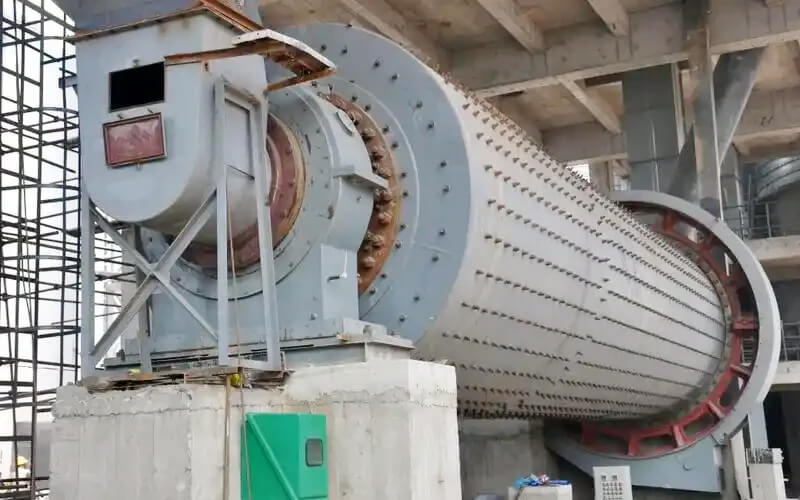

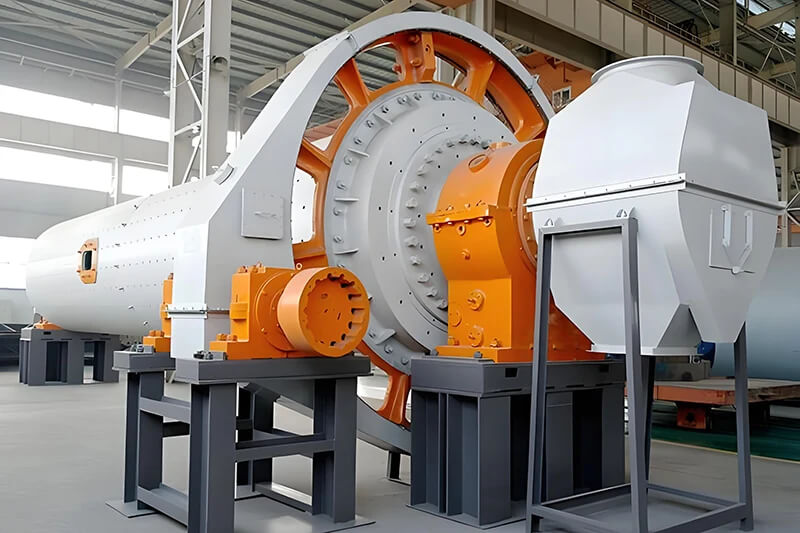

Cement ball mill is mainly applied to the grinding of finished products and raw materials in cement plants, and is also suitable for metallurgy, chemical industry, electric power and other industrial and mining enterprises to grind all kinds of ores and other grindable materials. It can be used for open-flow grinding, and is also suitable for circulating circle-flow grinding with powder selector. Cement mill has the characteristics of strong adaptability to materials, continuous production, large crushing ratio, easy to adjust the speed of the fineness of grinding products. Cement ball mill can be used for both dry and wet production, or grinding and drying at the same time.
Equipment Advantages
Technical advantages
High quality castings
Our machines use high-quality materials and imported quality. Reduce the wear of accessories and increase the life of the machine.
Easy replacement of accessories
The lubrication system adopts polymer composite pipe, which effectively reduces the occurrence of oil leakage, and the novel design reduces the difficulty of installing parts.
Overload protection
When the unbreakable material falls into the crusher and the machine exceeds the normal load, the automatic stop device can automatically stop to avoid damage to the entire machine and ensure production safety.
Low noise and less dust
Through innovative R&D and design, our machine has the advantages of less dust, green and environmental protection, and passed the local environmental protection policy.
Technical parameters
| Model(m) | Mill Type | Transmission Type | Reducer | Power(kw) | Capacity(t/h) | Weight(t) | |
| Model | Speed ratio | ||||||
| φ1.83×7 | Open flow | Edge | ZD60 | 4.5 | 245 | 6.5-8 | 36 |
| φ2.2×7.5 | Circular flow | Edge | ZD70 | 5 | 380 | 8-10 | 56 |
| φ2.2×11 | Open flow | Center | D110 | 35.5 | 630 | 12-13 | 104.6 |
| φ2.2×13 | Open flow | Center | D110 | 35.5 | 630 | 16-18 | 114 |
| φ2.4×13 | Open flow | Center | D110 | 35.5 | 800 | 20-23 | 171.5 |
| φ2.6×13 | Open flow | Center | MFY100 | 19.5 | 1000 | 28-32 | 149.7 |
| φ3×9 | Circular flow | Edge | D125 | 41.2 | 1000 | 28-36.5 | 136.4 |
| φ3×11 | Circular flow | Center | D140 | 42.8 | 1250 | 36-47 | 180 |
| φ3.2×13 | Open flow | Center | D140 | 36.5 | 1600 | 45-50 | 198 |
| φ3.8×13 | Open flow | Center | MFY250 | 16.5 | 2500 | 60-62 | 204 |
| φ4.2×13 | Open flow | Center | JQS3550 | 15.6 | 3530 | 85-87 | 254 |
